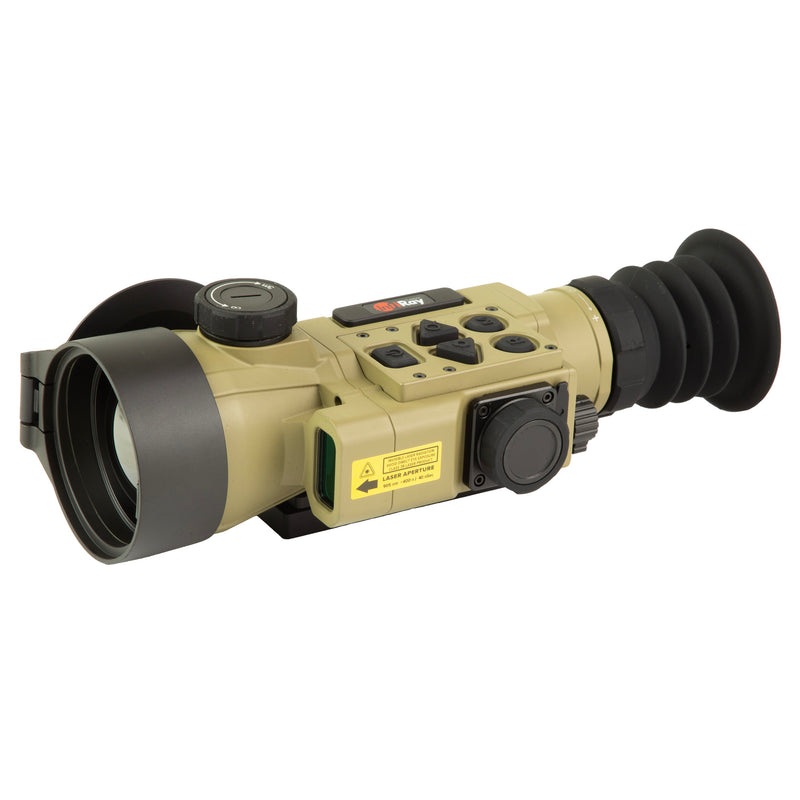

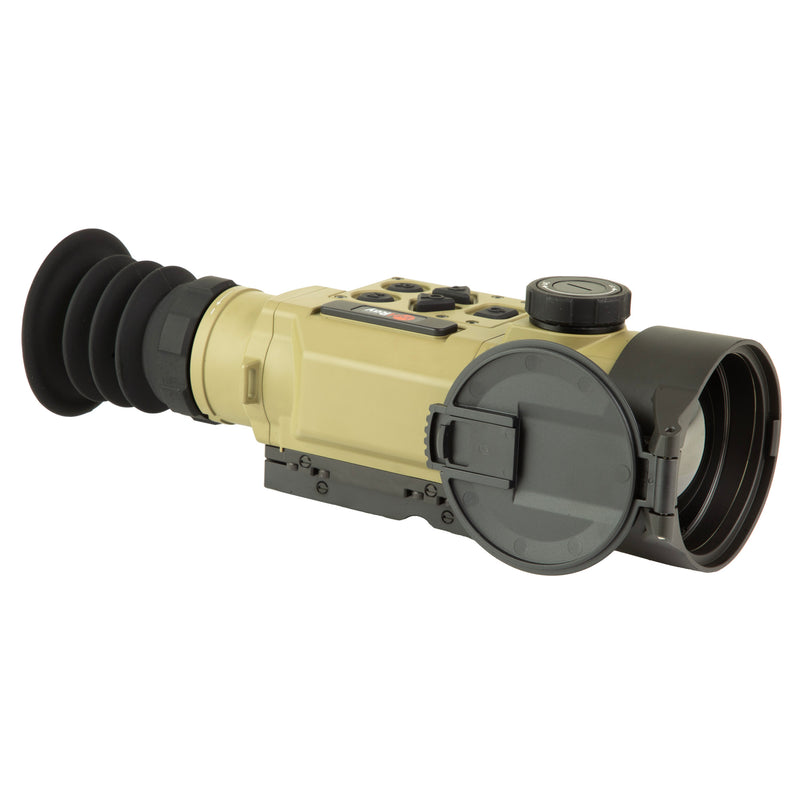

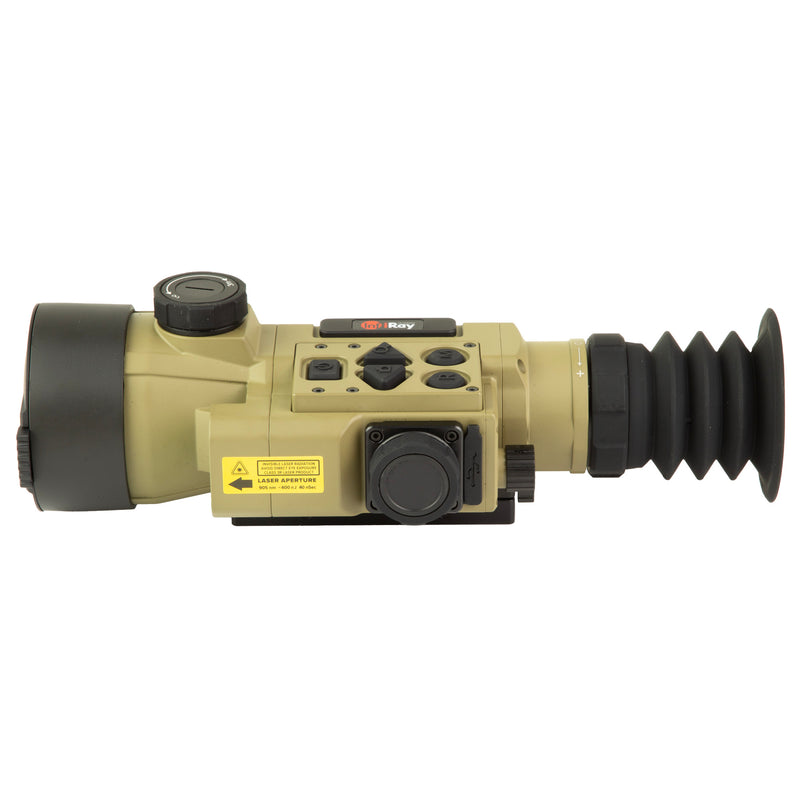

IRAYUSA Hybrid Compact Thermal Sight 3.5x 640x480 50mm with Laser Rangefinder, 10 Micrometer Sensor IRAY-HCH50R

SKU: FLX-IRAY-HCH50R

Vendor IRAYUSA
Regular price $6,749.98
Sale price $6,749.98 Regular price
Sale Sold out
Unit price
/per
FREE GROUND SHIPPING on orders $50+
Additional or Expedited Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Fast Shipping

American Owned

Easy Returns

Product Description

The IRAYUSA Hybrid Compact HCH50R advances the HYBRID series with a powerful 50mm F/0.9 germanium lens and the industry’s first available 10 micrometer thermal sensor. Its 640x480 InfiRay MICRO II sensor with ≤15 mK NETD and a 60 Hz refresh rate delivers outstanding thermal clarity and target definition. Purpose-built for versatility, the HCH50R can serve as a dedicated thermal weapon sight, a clip-on in front of day optics, or a handheld monocular. A crisp 1440x1080 AMOLED display, integrated 1200-yard laser rangefinder, and onboard ballistic calculator help you range and engage with confidence. With Fast Engine low-latency architecture (≈15 ms), onboard photo/video recording with 64GB storage, and rugged IP67 magnesium-alloy housing, the Hybrid Compact is engineered for reliable performance in demanding conditions.

Product Highlights

  • Versatile 3-in-1 use: dedicated thermal sight, clip-on, or handheld monocular
  • 640x480 InfiRay MICRO II sensor, 10 µm pixel pitch, ≤15 mK NETD for superior thermal sensitivity
  • 50mm F/0.9 germanium objective with 3.5x optical and up to 8x digital magnification
  • Integrated 1200-yard laser rangefinder with ballistic calculator for precise holds
  • 1440x1080 AMOLED display, Fast Engine low-latency (≈15 ms), and 60 Hz imaging for smooth tracking

Specs

  • Device Technology: Thermal Imaging
  • Sensor: InfiRay MICRO II, 640x480, 10 µm pixel size, ≤15 mK NETD
  • Lens: 50mm F/0.9 germanium
  • Optical Magnification: 3.5x; Digital Magnification: up to 8x
  • Display: 1440x1080 AMOLED
  • Refresh Rate: 60 Hz (sensor supports 60 Hz/30 Hz)
  • Eye Relief: 60 mm; Diopter: -5 to +5
  • Field of View (H x V): 7.3° x 5.5°
  • Detection Range: 3,060 yards (approx.)
  • Rangefinder: Integrated 1200 yd LRF; Ballistic calculator: Yes
  • Recording: Photo/Video onboard, 64GB internal storage; Wi‑Fi: Yes; Picture-in-Picture: Yes
  • Controls/N.U.C.: Manual, Automatic, Semi‑Automatic
  • Power: User-replaceable 18650 battery; External power via USB‑C; Runtime: 7+ hours
  • Mounting Interface: DLOC Picatinny
  • Reticles: 8 (7 static, 1 DIY)
  • Housing Material: Magnesium Alloy; Ingress Protection: IP67
  • Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
  • Operating Temperature: -4°F to 122°F; Startup: <10 s, instant from standby
  • Dimensions (L x W x H): 9.87 x 4.05 x 3.07 in
  • Weight: 25.56 oz
  • Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
  • Country of Manufacture: China
  • UPC: 850048751590
  • MPN: IRAY-HCH50R
  • Brand Name: IRAYUSA
