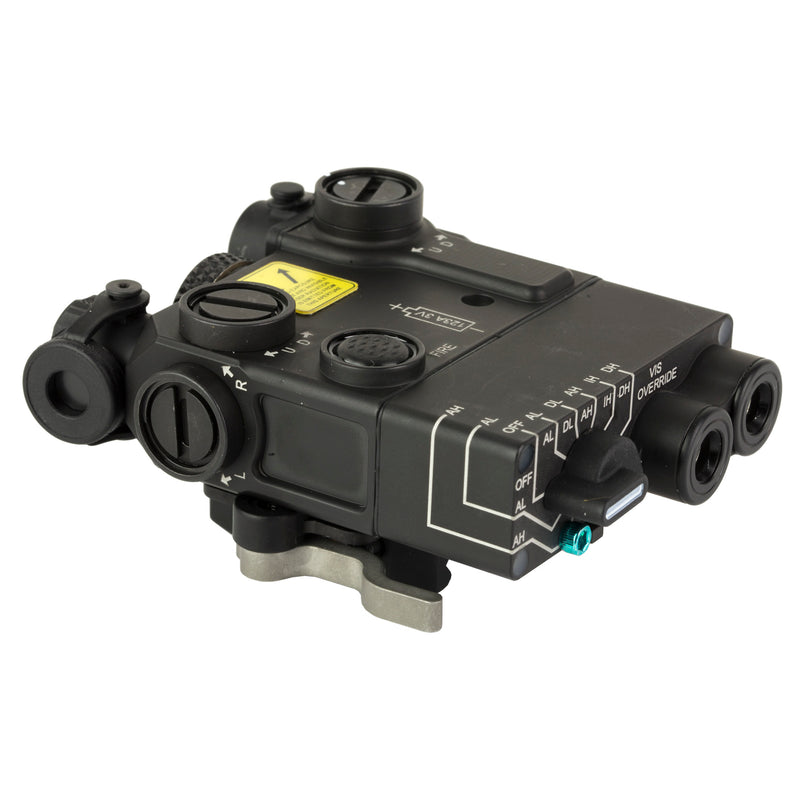

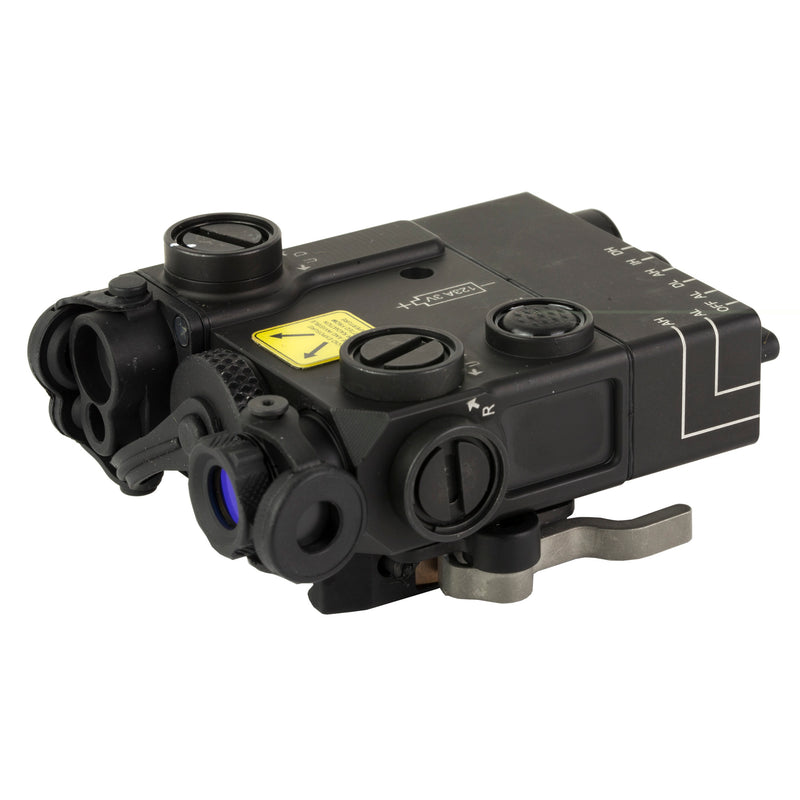

Steiner DBAL-D2 Dual-Beam Aiming Laser Sight with IR LED Illuminator, QD HT Mount 9001

Product Description

The Steiner DBAL-D2 is a rugged, compact dual-beam aiming solution that combines a green visible laser, an eye-safe infrared (IR) pointer, and a powerful IR LED illuminator in one rail-mounted unit. Designed for fast target acquisition in daylight or total darkness, the DBAL-D2 features co-aligned visible and IR lasers for simplified zeroing, adjustable IR illumination from a tight spot to a wide flood, and integrated switching with an included remote pressure pad. Precision-built from 6061-T6 aircraft aluminum with a MIL-SPEC Type III hardcoat anodized finish, it mounts securely to any MIL-STD-1913/Picatinny rail via a self-adjusting QD HT mount and is submersible to 5 meters.

Product Highlights

• Compact dual-beam aiming device with green visible laser, Class I eye-safe IR pointer, and IR LED illuminator
• Co-aligned lasers allow daylight zeroing of the visible laser to simultaneously zero the IR laser
• Adjustable IR illuminator beam from 2° spot to 30° flood for close quarters or long-range use
• Integrated push-button activation with remote cable pressure pad; high/low output modes
• Durable 6061-T6 aluminum housing with quick-release HT Picatinny mount; waterproof to 5 m

Specs

• Laser Type (Visible): Green, Class IIIa; Output <5 mW; Wavelength 532 nm; Beam Divergence <0.8 mRad
• Laser Type (IR Pointer): Class I; Output <0.7 mW; Wavelength 850 nm; Beam Divergence <0.8 mRad
• IR LED Illuminator: Eye-safe; Output <600 mW; Wavelength 850 nm; Beam Angle 2° to 30°; Range up to ~1000 m
• Range/Visibility: Visible laser ~750 m (night) / ~15 m (day); IR laser >250 m
• Dimensions (L x W x H): 3.95 x 3.37 x 1.59 in
• Weight (with battery): 12.5 oz
• Battery: One CR123A; Battery Life: >3 hours (mode dependent)
• Mount Type: QD HT quick-release Picatinny (MIL-STD-1913)
• Material/Finish: 6061-T6 aircraft aluminum, MIL-SPEC Type III hardcoat anodized
• Operating Temperature: ~5°C to +65°C
• Waterproof: Submersible to approximately 5 m
• Country of Origin: USA
• UPC: 000381890016
• Manufacturer Part Number: 9001
• Brand Name: Steiner
