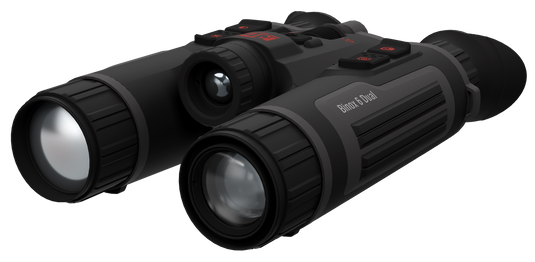

The ATN Binox 6 Dual is a cutting-edge multispectral binocular engineered for professionals, hunters, and tactical operators who demand total situational awareness in any lighting condition. Combining a 6th Generation Thermal Engine with an Ultra HD 4K CMOS day sensor and integrated IR night vision, this single compact device delivers four complete vision modes: Day, Night, Thermal, and Twilight. Whether you are scanning ridgelines at dawn, tracking heat signatures through dense brush, or coordinating in complete darkness, the Binox 6 Dual provides uncompromised clarity and control. Its rugged magnesium alloy body, IP67 weather protection, and up to 8 hours of dual 18650 battery runtime make it as dependable in the field as it is technologically advanced.
Product Highlights
- 6th Generation Thermal Engine with 256x192 Sensor and ≤20 mK NETD: Detects subtle heat signatures with outstanding contrast through brush, fog, smoke, and total darkness using a 12 μm VOx uncooled focal plane array.
- Quad-Mode Vision in One Device: Seamlessly switch between Day (4K UHD), Night (IR up to 350 m), Thermal, and Twilight modes via Dual-View Switching technology for instant situational awareness in any environment.
- Integrated 1,000-Yard Laser Rangefinder: Delivers precise distance measurements with ±1 m accuracy, eliminating the need for a separate rangefinder during hunts, search-and-rescue operations, or field assessments.
- ATN SharpIR AI-Enhanced Imaging: Real-time artificial intelligence sharpens edges, boosts contrast, and enhances detail in both thermal and digital modes, delivering consistently clear and identifiable images.
- Onboard 4K Recording, 64 GB Storage, and Wi-Fi Connectivity: Capture 4K daytime footage and 1080p thermal video directly to 64 GB of internal storage, with built-in Wi-Fi for live streaming and connectivity through the ATN Connect 6 app.
Specs
- Brand: ATN
- Manufacturer Part Number (MPN): MSBNB6225A
- UPC: 658175988557
- Thermal Sensor Resolution: 256x192
- Detector Type: 12 μm VOx Uncooled Focal Plane Array
- Thermal Sensitivity (NETD): ≤20 mK
- Thermal Lens System: 25 mm, F/0.9
- Thermal Field of View (HxV): 7.0° x 5.3°
- Detection Range: Up to 1,500 m
- Day Sensor: 1.8" CMOS, 3840x2160 Ultra HD (4K)
- Day Lens System: 55 mm, F/2.0
- IR Night Vision Range: Up to 350 m
- Display: 0.49" 1920x1080 OLED at 50 Hz refresh rate
- Laser Rangefinder: 1,000-yard range, ±1 m accuracy
- Digital Zoom: 1x, 2x, 4x, 8x
- Magnification Maximum: 48x
- Objective Lens Diameter: 25 mm
- Eye Relief: 15 mm
- Field of View: 7.05 degrees
- Exit Pupil Diameter: 20 mm
- Minimum Focus Distance: 3 m
- Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
- Non-Uniformity Correction: Auto / Semi Auto / Manual
- Internal Storage: 64 GB
- Video Recording: 4K daytime, 1080p thermal
- Connectivity: Built-in Wi-Fi
- Prism Type: Roof Prism
- Lens Coating: Anti-Reflective
- Focus Type: Manual, Front Lens Adjustment
- Mount Type: Tripod Mount
- Housing Material: Magnesium Alloy
- Water Resistance: IP67 Waterproof
- Battery: Dual Replaceable 18650 (included)
- Battery Life: Up to 8 hours
- Item Weight: 1.56 lbs
- Item Dimensions (L x W x H): 8.27" x 7.26" x 2.17"
- Color: Black
- In the Box: Binox 6 Dual, 2x 18650 Battery and Charger, Data Cable, Neck Strap, Portable Bag
- Warranty: 5-Year Manufacturer Warranty
Disclaimer: We strive to provide accurate and up-to-date product descriptions, specifications, and images; however, errors or omissions may occasionally occur. We are not responsible for any inaccuracies or discrepancies in the content provided. If you notice anything incorrect or unclear, please contact us so we can correct it. When in doubt, we recommend verifying details directly with the product's manufacturer.
