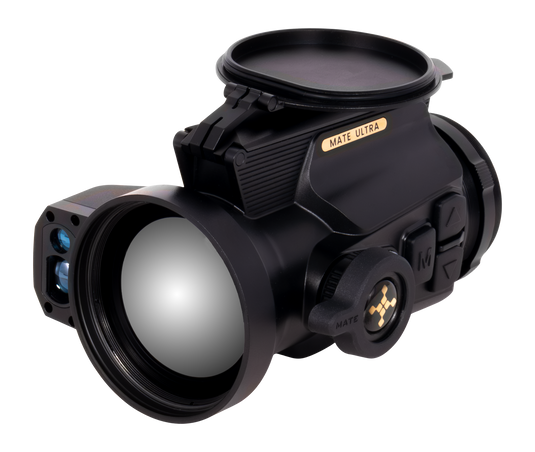

The NOCPIX MATE Ultra S60R is a next-generation multifunction thermal clip-on engineered for serious hunters and professional shooters who demand uncompromising performance after dark. Pairing an industry-leading 1280x1024, 12µm thermal sensor with an integrated 1,300-yard laser rangefinder and a ballistic calculator, all in a compact and rugged clip-on design, the MATE Ultra S60R delivers a complete solution for low-light and no-light engagements. Mount it directly in front of your existing daytime optic to instantly add high-resolution thermal capability without re-zeroing or swapping optics. Compatible with magnifications up to 12x, it delivers exceptional image clarity through a fast 60mm f/1.0 objective lens paired with a high-resolution 1920x1200 AMOLED display. Built on a lightweight magnesium alloy chassis with IP67 water and dust resistance, the MATE Ultra S60R is designed to withstand heavy recoil up to 1000 g/s² and operate dependably in harsh field conditions from -4°F to 122°F. Whether you are pursuing hogs and predators or running multiple rifle configurations, the MATE Ultra S60R performs when the sun goes down.
Product Highlights
- World-Class 1280x1024 Thermal Sensor: Features a 12µm pixel pitch and ≤15mK NETD sensitivity for exceptional heat detection and image clarity up to 3,390 yards of detection range.
- Integrated 1,300-Yard Laser Rangefinder with Ballistic Calculator: Precise ±1-yard accuracy LRF feeds custom cartridge profiles and bullet-drop data directly to an on-screen ballistic calculator for confident long-range shots.
- True Clip-On Versatility: Mounts in front of any daytime optic compatible up to 12x magnification without the need to re-zero, preserving your existing zero and optic setup across multiple rifle platforms.
- Advanced Recording and Display: Recoil-activated video recording with pre- and post-shot capture, slow-motion playback, 64GB internal storage, and a 1920x1200 AMOLED display with a 60Hz refresh rate for smooth, real-time imaging.
- Rugged and Field-Ready Design: Magnesium alloy housing with IP67 protection, fast sub-10-second startup, top-loading 18650 rechargeable batteries for quick field replacement, and a 5-year manufacturer warranty.
Specs
- Brand: IRAY USA LLC / NOCPIX
- Model: MATE Ultra S60R
- MPN: MATE-S60R
- UPC: 850048751743
- Type: Thermal Imaging Clip-On
- Sensor Resolution: 1280x1024
- Sensor Refresh Rate: 60Hz
- Pixel Pitch: 12µm
- Thermal Sensitivity (NETD): ≤15mK
- Objective Lens Diameter: 60mm
- Objective Lens Aperture: f/1.0
- Compatible Magnification: Up to 12x
- Detection Range: 3,390 yards
- Display Resolution: 1920x1200
- Display Type: AMOLED
- Eye Relief: 20mm
- Field of View: 14.7° x 11.7°
- Laser Rangefinder Range: 1,300 yards (±1 yard accuracy)
- Ballistic Calculator: Yes, with custom cartridge profiles and bullet-drop data
- Color Palettes: White Hot, Black Hot, Red Hot, Rainbow, Viridian, Crimson, Violet
- Internal Storage: 64GB
- Video Recording: Recoil-activated with pre/post-shot capture and slow-motion playback
- Battery Type: 18650 Rechargeable (top-loading, 4 included)
- Housing Material: Magnesium Alloy
- Waterproof Rating: IP67
- Operating Temperature: -4°F to 122°F
- Recoil Resistance: Up to 1000 g/s² (.300 Win Mag / 7mm Mag)
- Startup Time: Under 10 seconds
- Weight: 19.75 oz
- Dimensions: 5.51" x 3.78" x 3.07"
- Finish: Matte Black
- Warranty: 5-Year Manufacturer Warranty
Disclaimer: We strive to provide accurate and up-to-date product descriptions, specifications, and images; however, errors or omissions may occasionally occur. We are not responsible for any inaccuracies or discrepancies in the content provided. If you notice anything incorrect or unclear, please contact us so we can correct it. When in doubt, we recommend verifying details directly with the product's manufacturer.
